A precise thickness profile measurement of steel strips and an efficient surface inspection are decisive for constantly high product quality. They help to minimise the rate of rejects and reduce customer complaints. Existing rolling mills, however, often lack space for both systems to be integrated as independent solutions.
Heiligenhaus, April 2025
Often, space in rolling mills is scarce. At the same time, quality requirements are continuously increasing so that additional measuring, detection and inspection systems are required to check and fully document the material parameters.

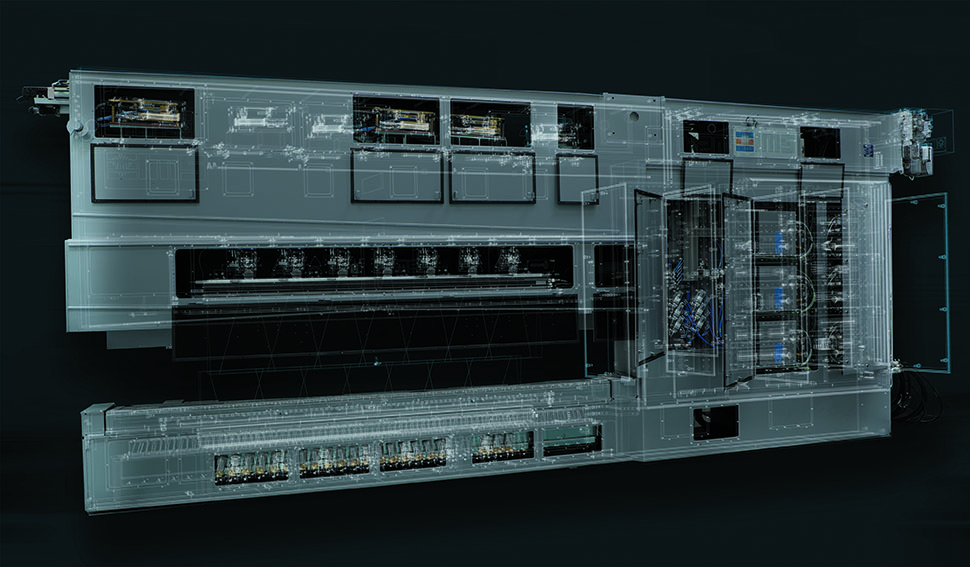

Two systems in one housing: XR SMC multichannel thickness profile measuring system with LasCon and surcon 2D surface inspection system
As the first manufacturer of the industry IMS Messsysteme GmbH offers steel hot mills an x-ray based multichannel thickness profile measuring system with integrated 2D surface inspection system. This innovative system combines the thickness profile measurement with the surface inspection of the strip top side in just one housing.
The inspection system for the strip bottom side is provided in a mechanically separated way, as it is usually installed further away from the last roll stand. This space-saving solution enables mill operators that already use a thickness profile measuring system but lack space to accommodate a separate surface inspection system to efficiently fulfil both measuring tasks.
Comprehensive measuring functions at a glance
The system fulfils the following measuring tasks:
- Continuous thickness measurement in the centre of the roller table
- Continuous measurement of the strip thickness cross profile
- Optional flatness measurement with integrated laser contour measuring device (LasCon)
- Measurement of the width and centreline deviation
- Calculation of the wedge and crown values
- Fastest and continuous cross profile measurement compared to other measuring systems with cross profile function
- Continuous guarantee of centreline thickness detection
- 100% online inspection with high-performance LEDs and fast line scan cameras
- Extended automatic defect detection in different illumination angles
- Instant detection of periodic defects that indicate potential roll defects
Bespoke technology with unique features
The XR SMC multichannel thickness profile measuring device with integrated surcon 2D surface inspection system is captivating not only with its comprehensive measuring functions but also with the following special features:
- Customisable C-frame dimensions
- Optional integration of a temperature measurement
- Established IMS technology for X-ray high-voltage generators and ionisation chambers (detectors)
- Flexible application of the surface inspection in various processing steps for root-cause analysis
- Online visualisation and report generation via an adjustable interface
- Integrated quality assessment tool: Define your own rules for instant assessment of the surface quality
- Individualisierbare C-Rahmen-Abmessungen
- Optionale Integration einer Temperaturmessung
- Bewährte IMS-Technologie für Röntgenhochspannungsgeneratoren und Ionisationskammern (Detektoren)
- Flexible Anwendung der Oberflächeninspektion in verschiedenen Verarbeitungsschritten zur Ursachenanalyse
- Online-Visualisierung und Berichterstellung über eine anpassbare Schnittstelle
- Integriertes Qualitätsbewertungswerkzeug: Definieren Sie eigene Regeln zur sofortigen Beurteilung der Oberflächenqualität
Thanks to this combination of compact design, state-of-the-art technology and versatile functions the system provides a future-proof solution for rolling mills where highest quality standards must be met but space is limited.
